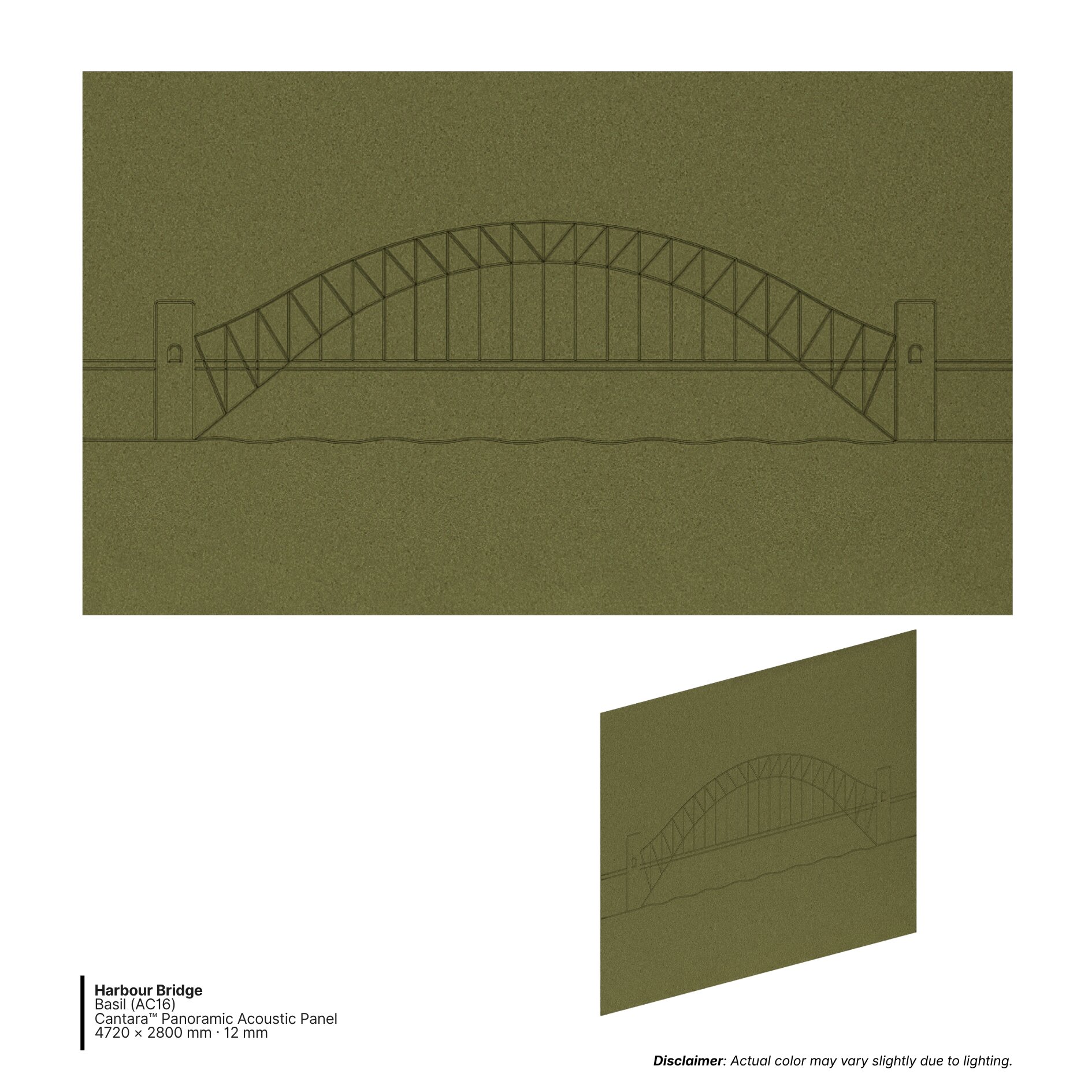

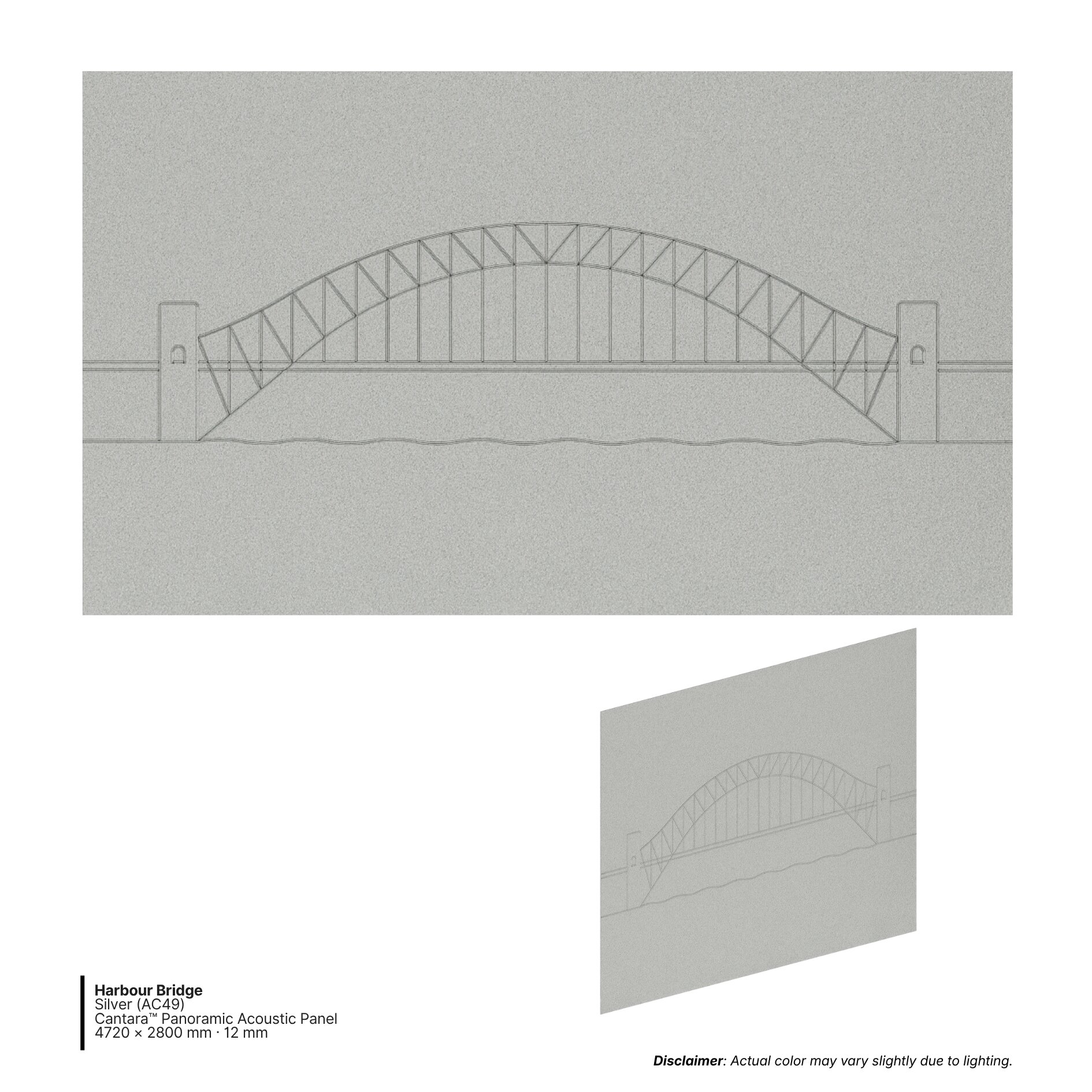

Cantara™ Panoramic : Harbour Bridge

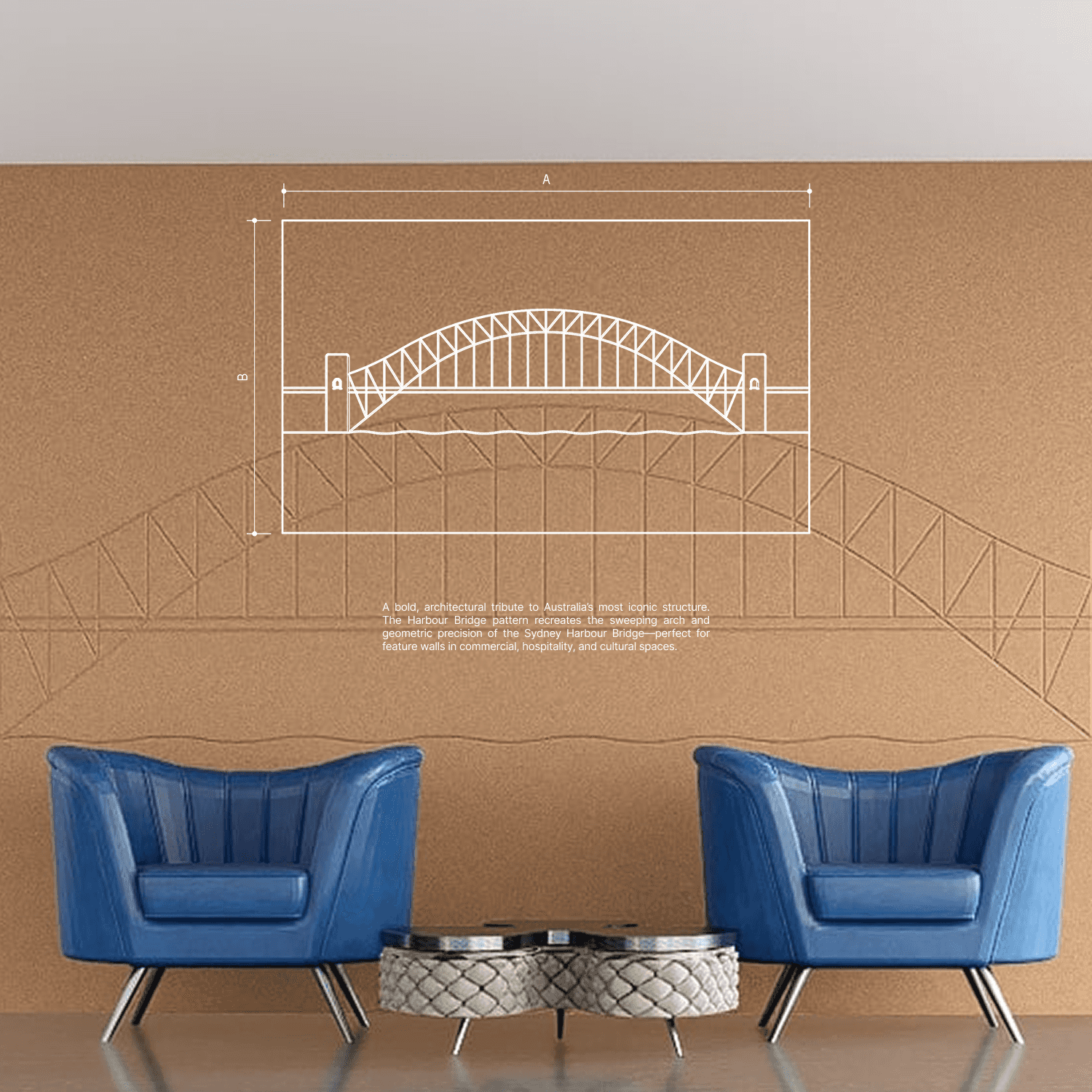

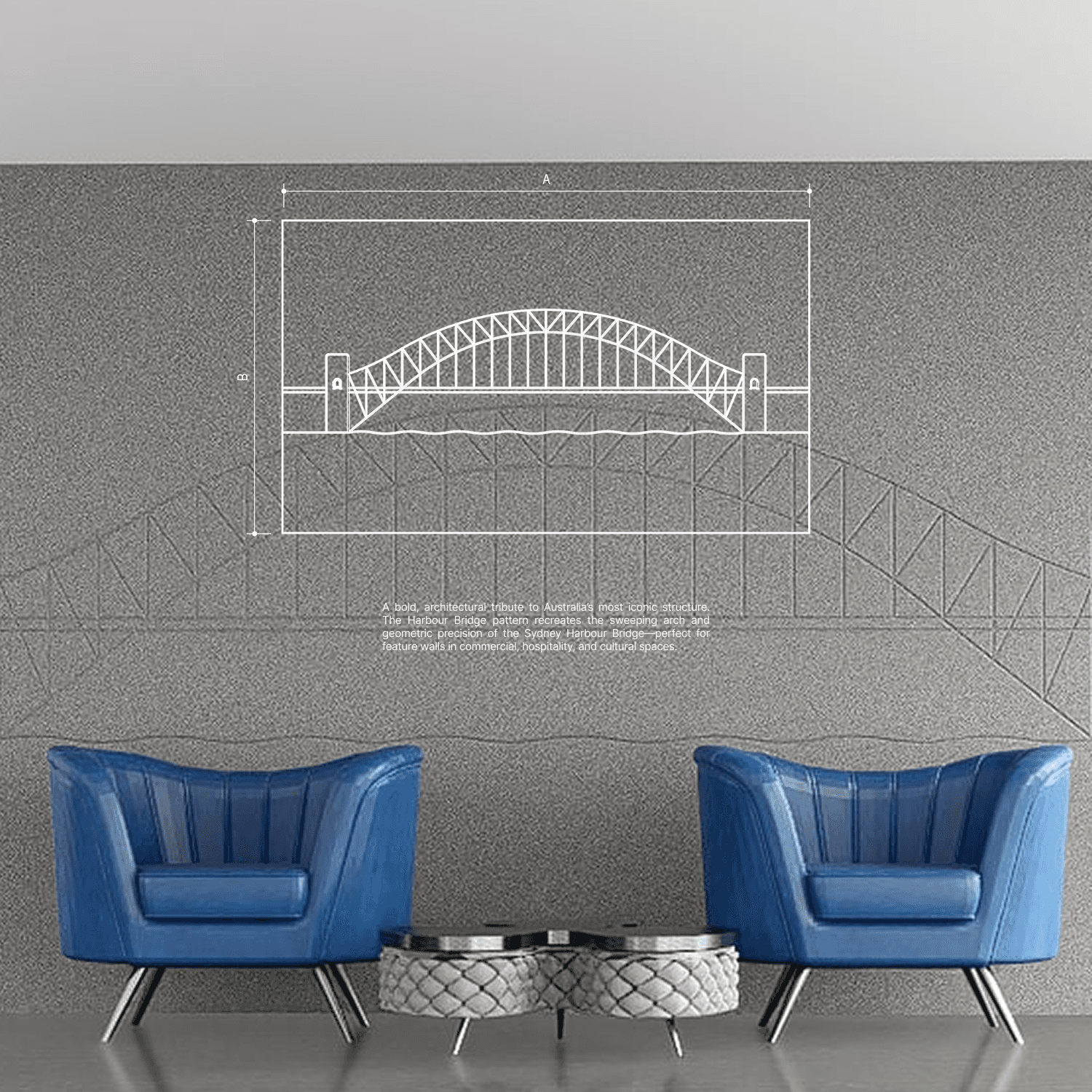

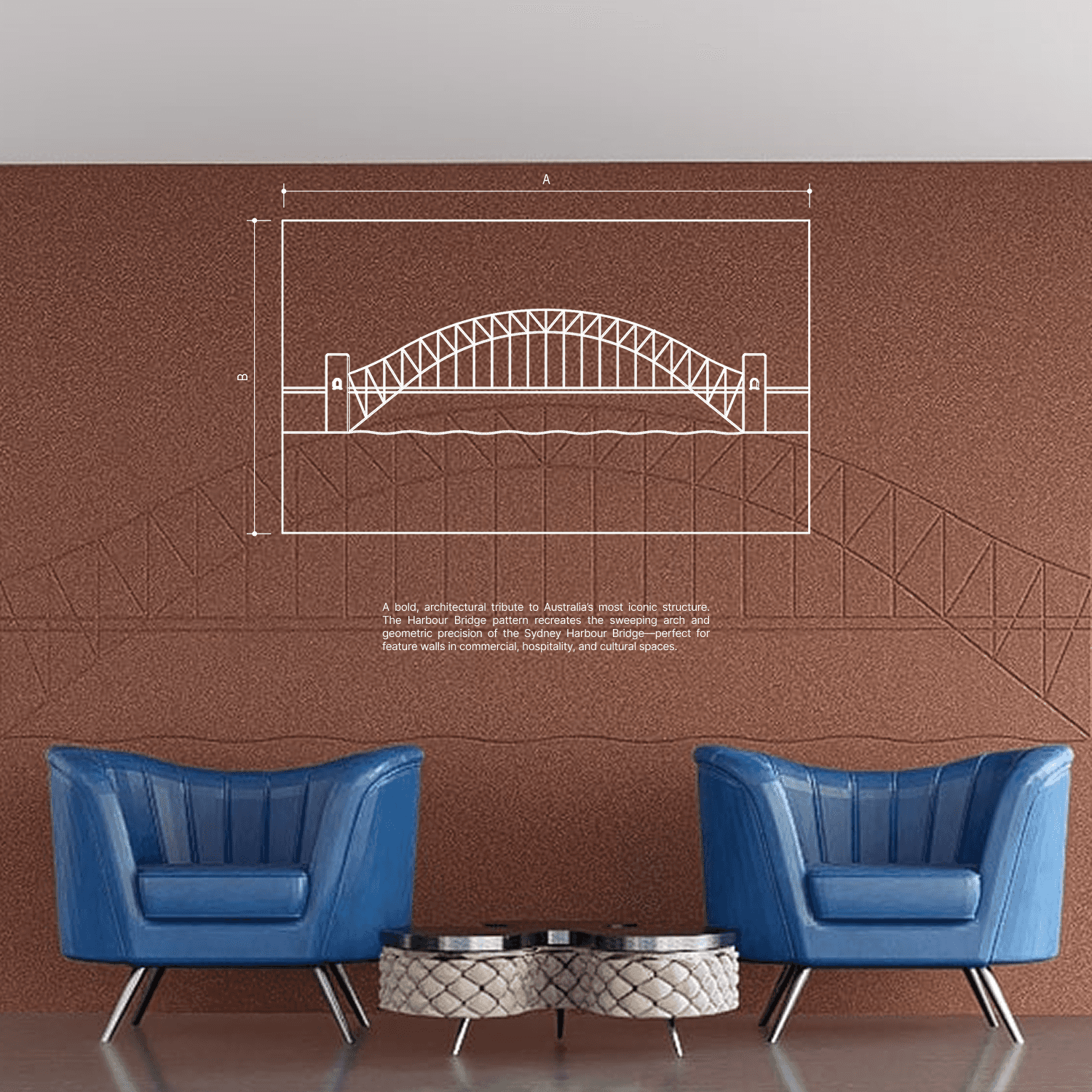

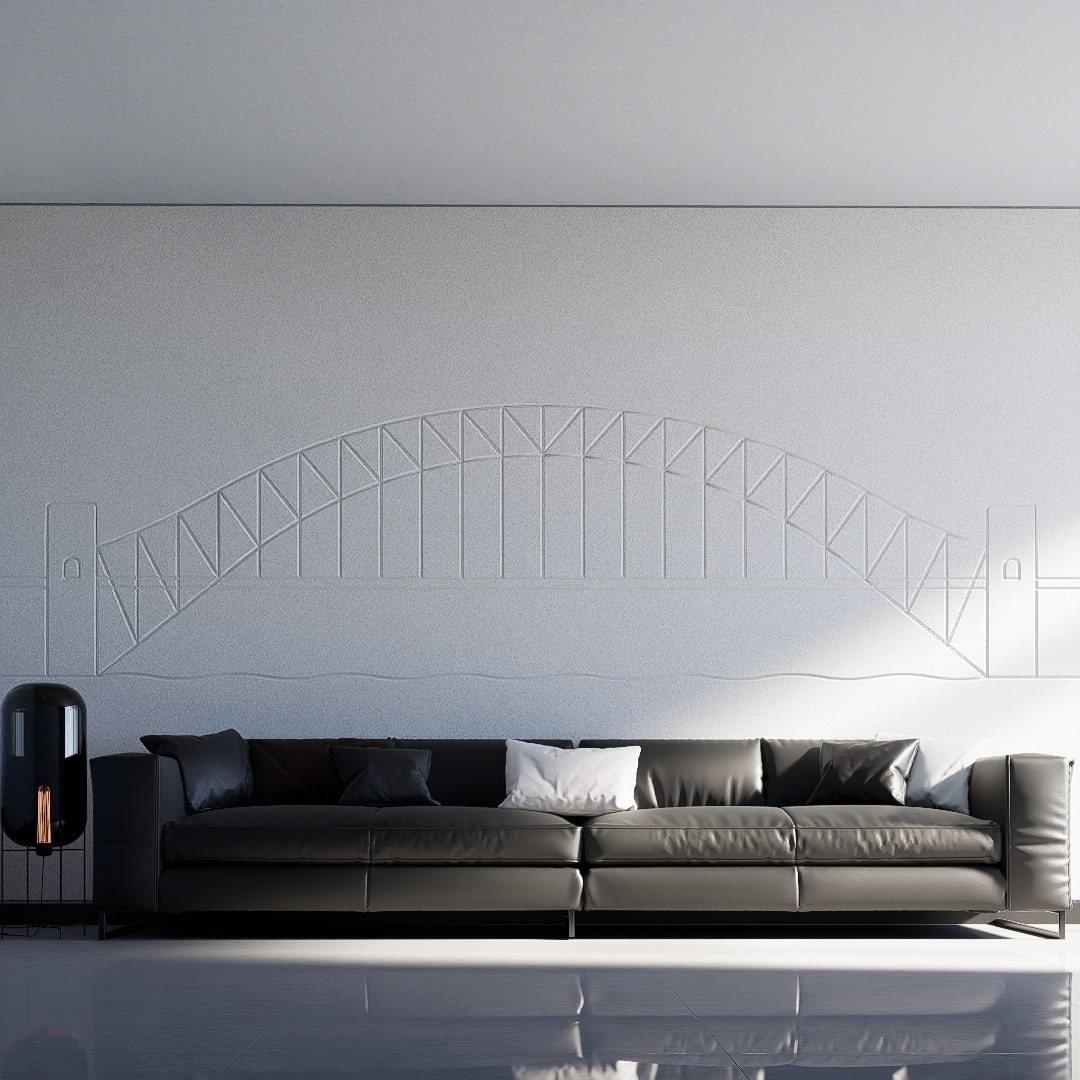

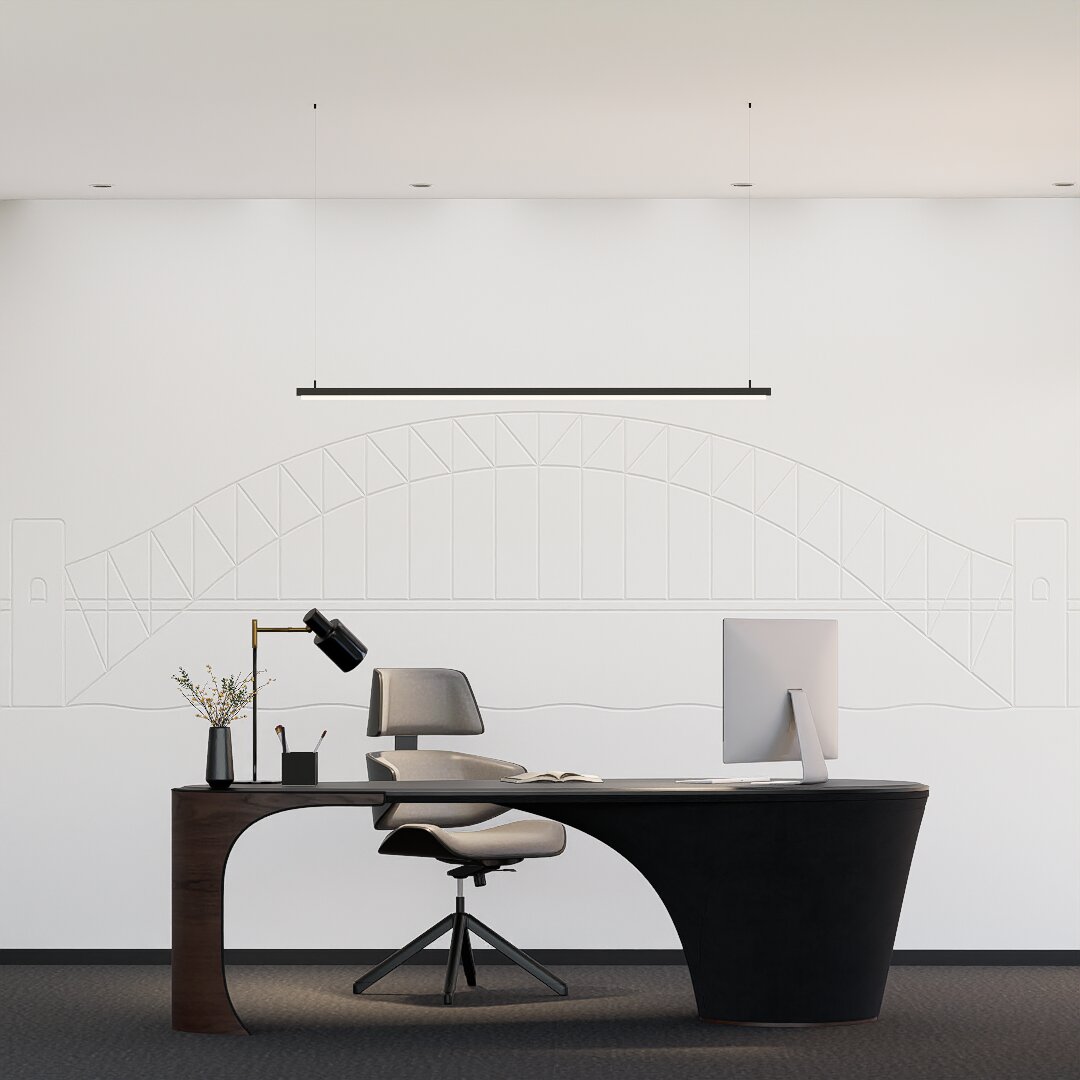

A bold, architectural tribute to Australia’s most iconic structure. The Harbour Bridge pattern recreates the sweeping arch and geometric precision of the Sydney Harbour Bridge—perfect for feature walls in commercial, hospitality, and cultural spaces.
Pattern Selection
ColorAC01 - White
Expression
Composition: 100% PET (60% - 80% post-consumer Recycled)
Colours Available: 42
Pattern Type: Precision cut
Dimensions and Weight
Length: 2800mm (+/-2 mm)
Width: 1180mm (+/- 2mm)
Thickness: 12mm (+/-7%)
Unit of Sale: Panel
Density: 2400gsm
Fire Test Results
Standard Test Method:
AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)
ASTM C423 - 17
Sound Absorption Average (SAA) Results:
Direct fix: 0.43
20mm air gap: 0.61
50mm air gap: 0.75
Weighted Sound Absorption Coefficient (αw) Results:
Direct fix: 0.30 (MH)
20mm air gap: 0.45 (MH)
50mm air gap: 0.60 (MH)
Sound Absorption Class:
D (Direct fix), D (20mm air gap), C (50mm air gap)
Equivalent Absorption Area (Aeq) in m² Sabins
Noise reduction coefficient result key:
H = High Frequency
MH = Mid to High Frequency
Acoustic Performance
NCC C1.10 Clause 4 (AS 5637.1:2015)
NZBC C/VM2 Appendix A
Group 1. SMOGRA: 13mm²/s² x 1000
Group 1-S, Smoke Production Rate: 3.6m²/s
Core Composition. Pattern.
Sustainability
VOC Emissions Results:
ASTM D5116 - 2017: TVOC Emissions Rate: 0.080mg/m²/hr (24hrs), Formaldehyde Emissions Rate: 0.008mg/m²/hr (24hrs)
CDPH Standard Method v1.2 – 2017 (CA 01350):
TVOC Emissions Rate: 0.010mg/m³, Formaldehyde Emissions Rate: <1μg/m³
Colour options
AC01 - White
