Cantara™ V-Groove : Riverstep

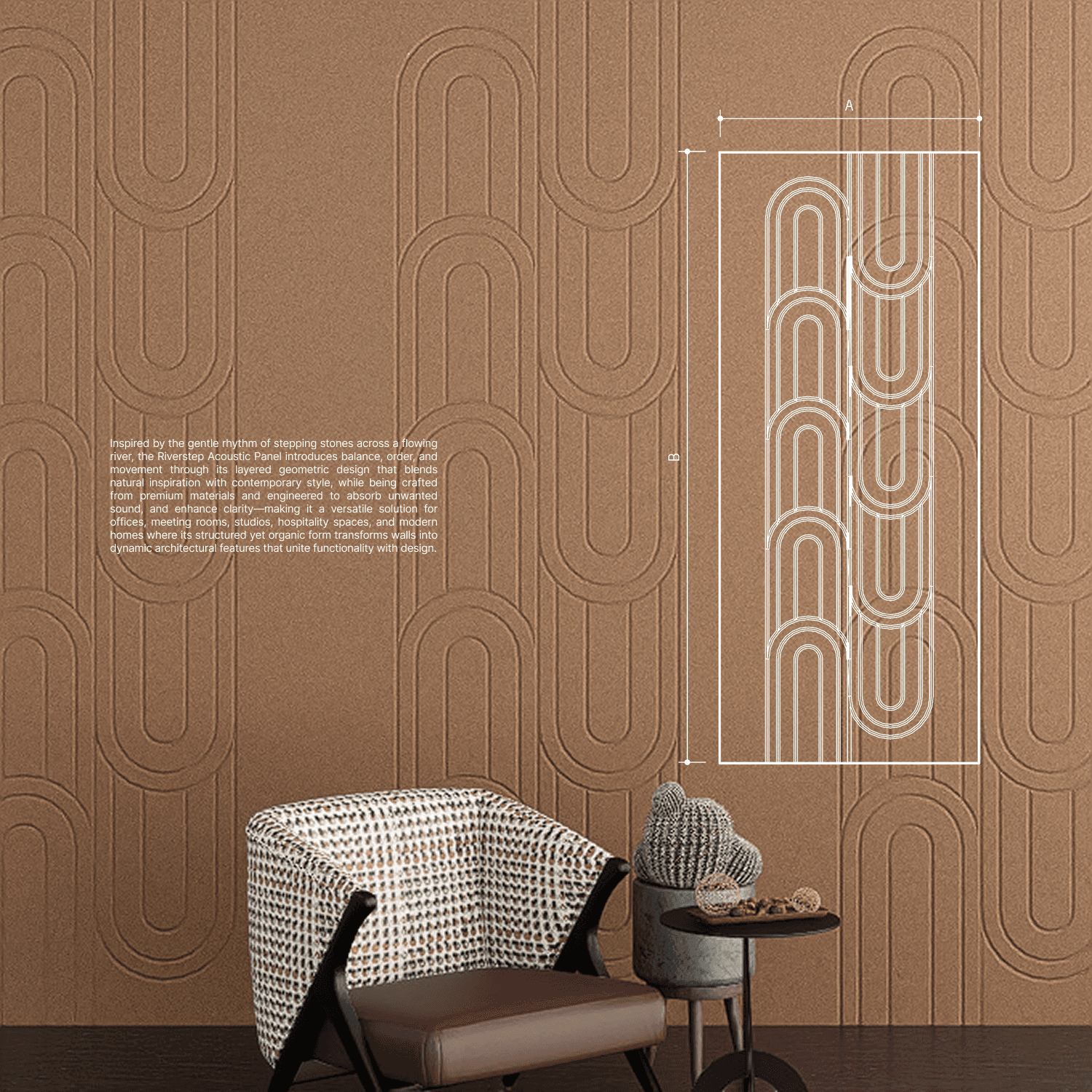

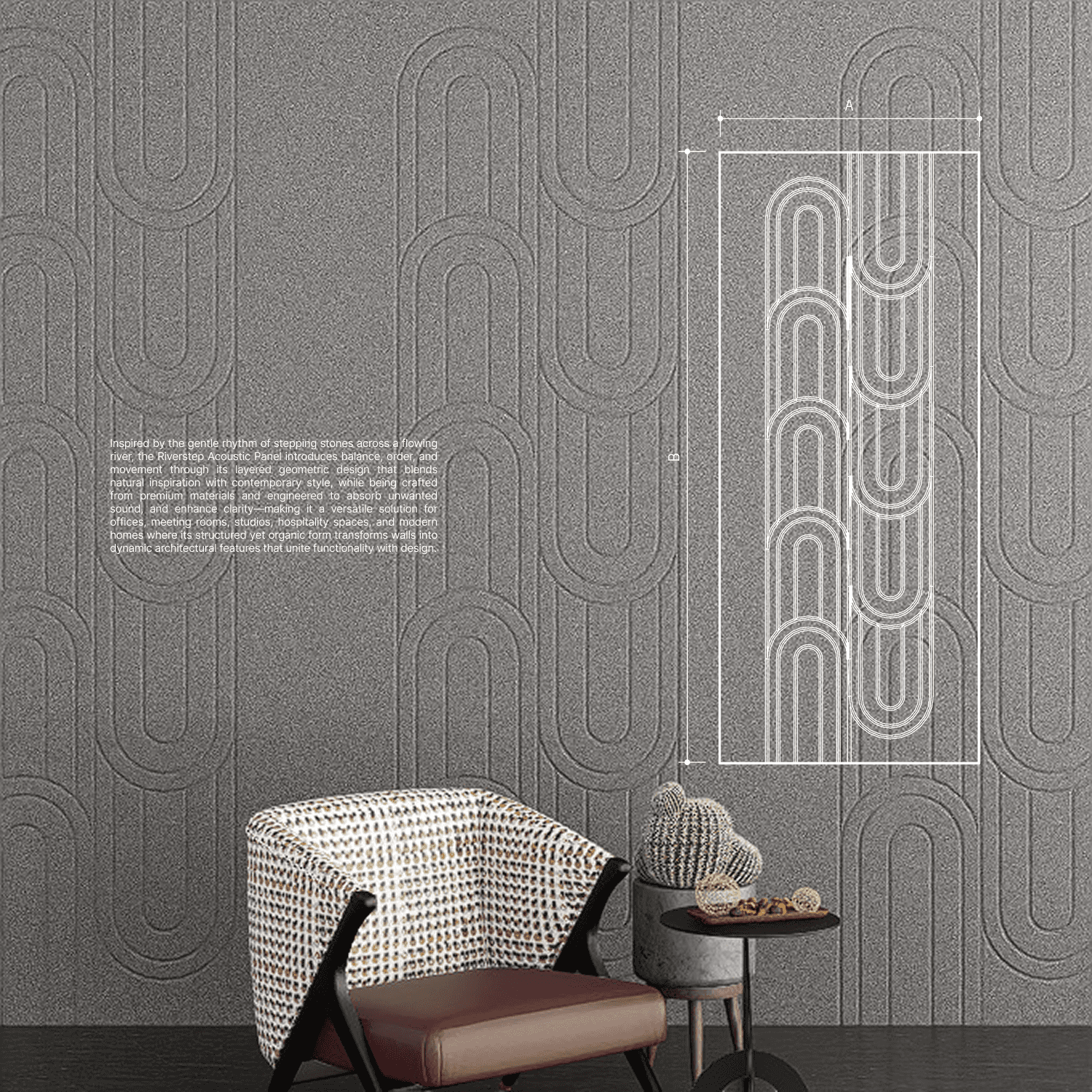

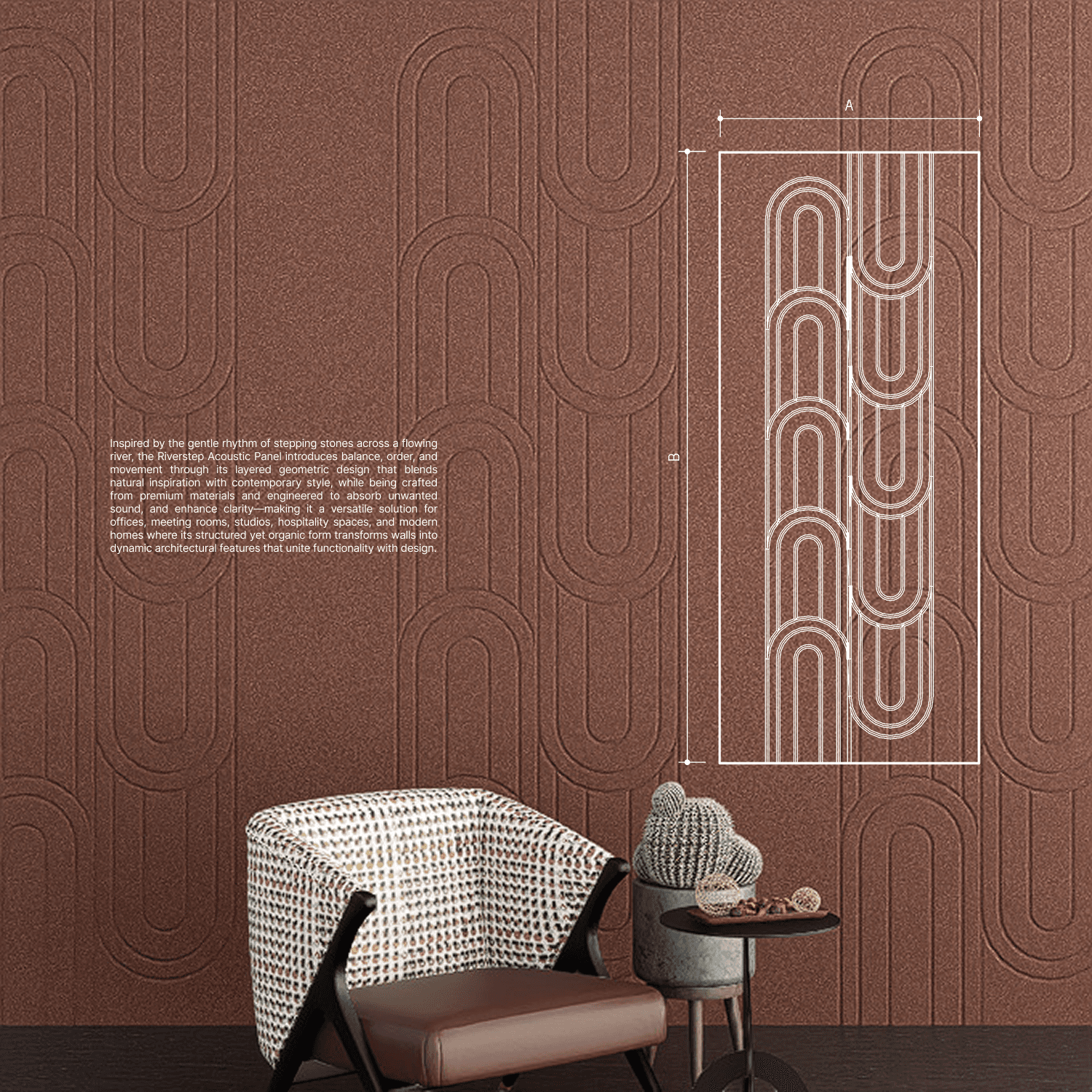

Inspired by the gentle rhythm of stepping stones across a flowing river, the Riverstep Acoustic Panel introduces balance, order, and movement through its layered geometric design that blends natural inspiration with contemporary style, while being crafted from premium materials and engineered to absorb unwanted sound, and enhance clarity—making it a versatile solution for offices, meeting rooms, studios, hospitality spaces, and modern homes where its structured yet organic form transforms walls into dynamic architectural features that unite functionality with design.
Pattern Selection
ColorAC01 - White
Expression
Composition: 100% PET (60% - 80% post-consumer Recycled)
Colours Available: 42
Pattern Type: Precision cut
Dimensions and Weight
Length: 2780mm (+/-2 mm)
Width: 1180mm (+/- 2mm)
Thickness: 12mm (+/-7%)
Unit of Sale: Panel
Density: 2400gsm
Fire Test Results
Standard Test Method:
AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)
ASTM C423 - 17
Sound Absorption Average (SAA) Results:
Direct fix: 0.43
20mm air gap: 0.61
50mm air gap: 0.75
Weighted Sound Absorption Coefficient (αw) Results:
Direct fix: 0.30 (MH)
20mm air gap: 0.45 (MH)
50mm air gap: 0.60 (MH)
Sound Absorption Class:
D (Direct fix), D (20mm air gap), C (50mm air gap)
Equivalent Absorption Area (Aeq) in m² Sabins
Noise reduction coefficient result key:
H = High Frequency
MH = Mid to High Frequency
Acoustic Performance
NCC C1.10 Clause 4 (AS 5637.1:2015)
NZBC C/VM2 Appendix A
Group 1. SMOGRA: 13mm²/s² x 1000
Group 1-S, Smoke Production Rate: 3.6m²/s
Core Composition. Pattern.

Sustainability
VOC Emissions Results:
ASTM D5116 - 2017: TVOC Emissions Rate: 0.080mg/m²/hr (24hrs), Formaldehyde Emissions Rate: 0.008mg/m²/hr (24hrs)
CDPH Standard Method v1.2 – 2017 (CA 01350):
TVOC Emissions Rate: 0.010mg/m³, Formaldehyde Emissions Rate: <1μg/m³
Colour options

AC01 - White
