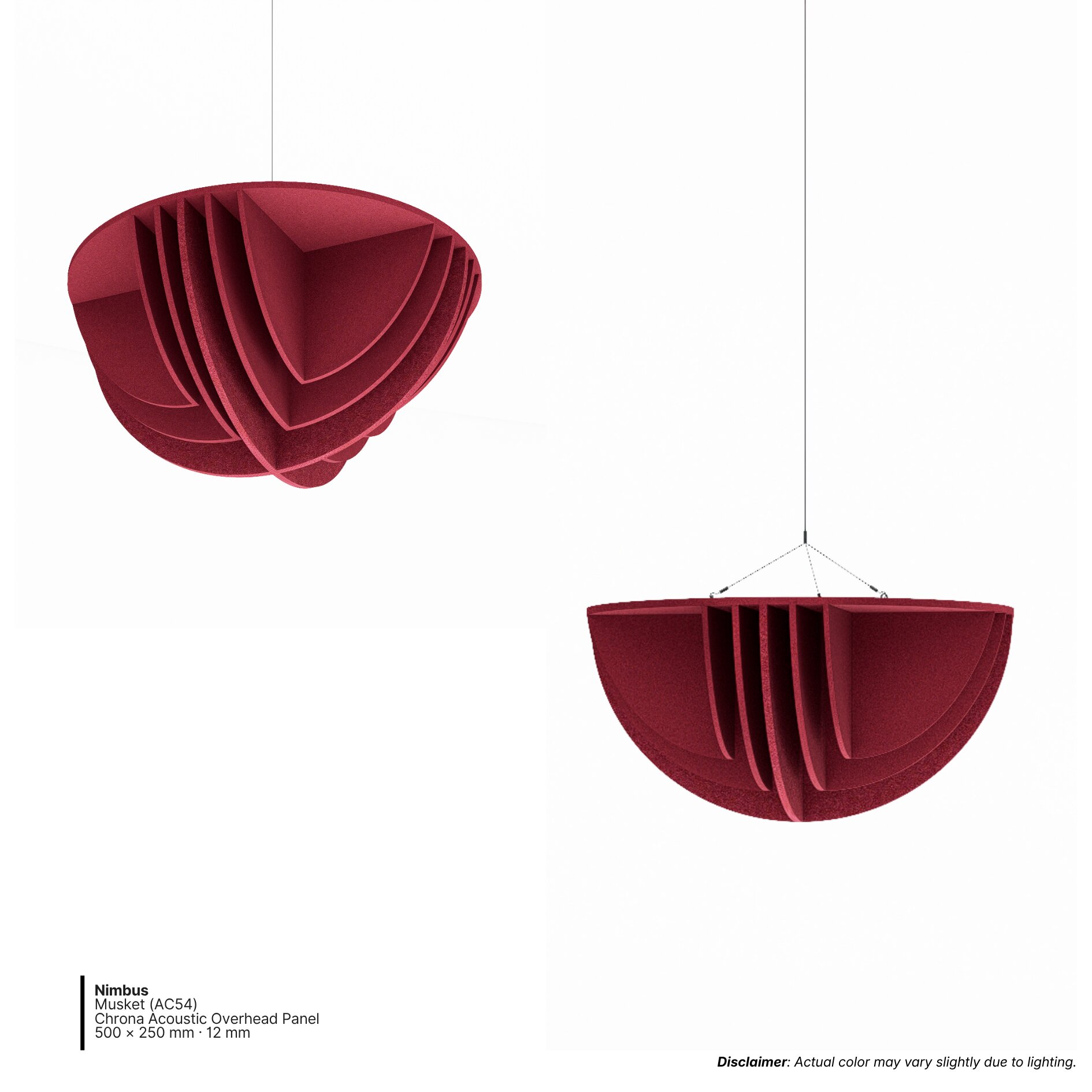

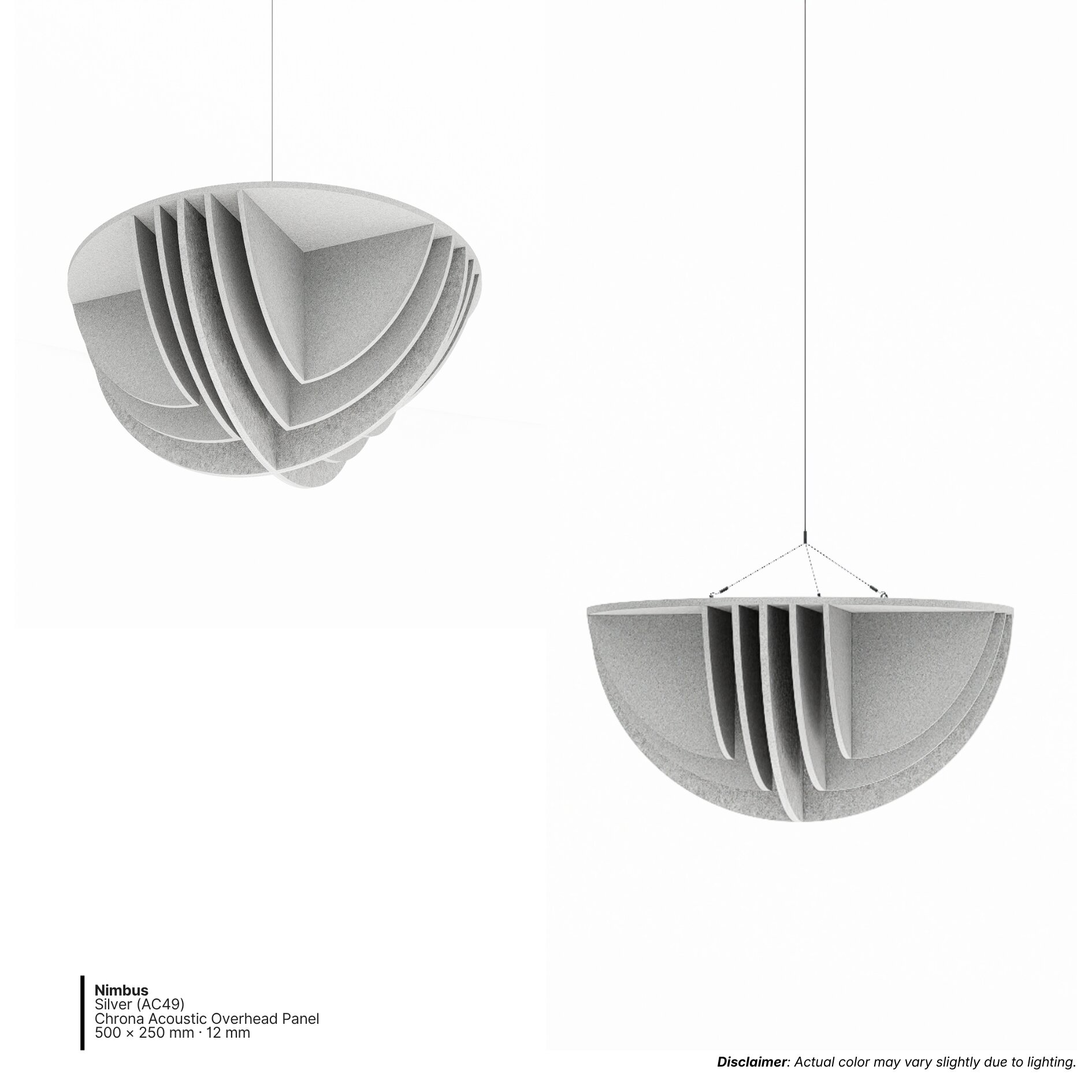

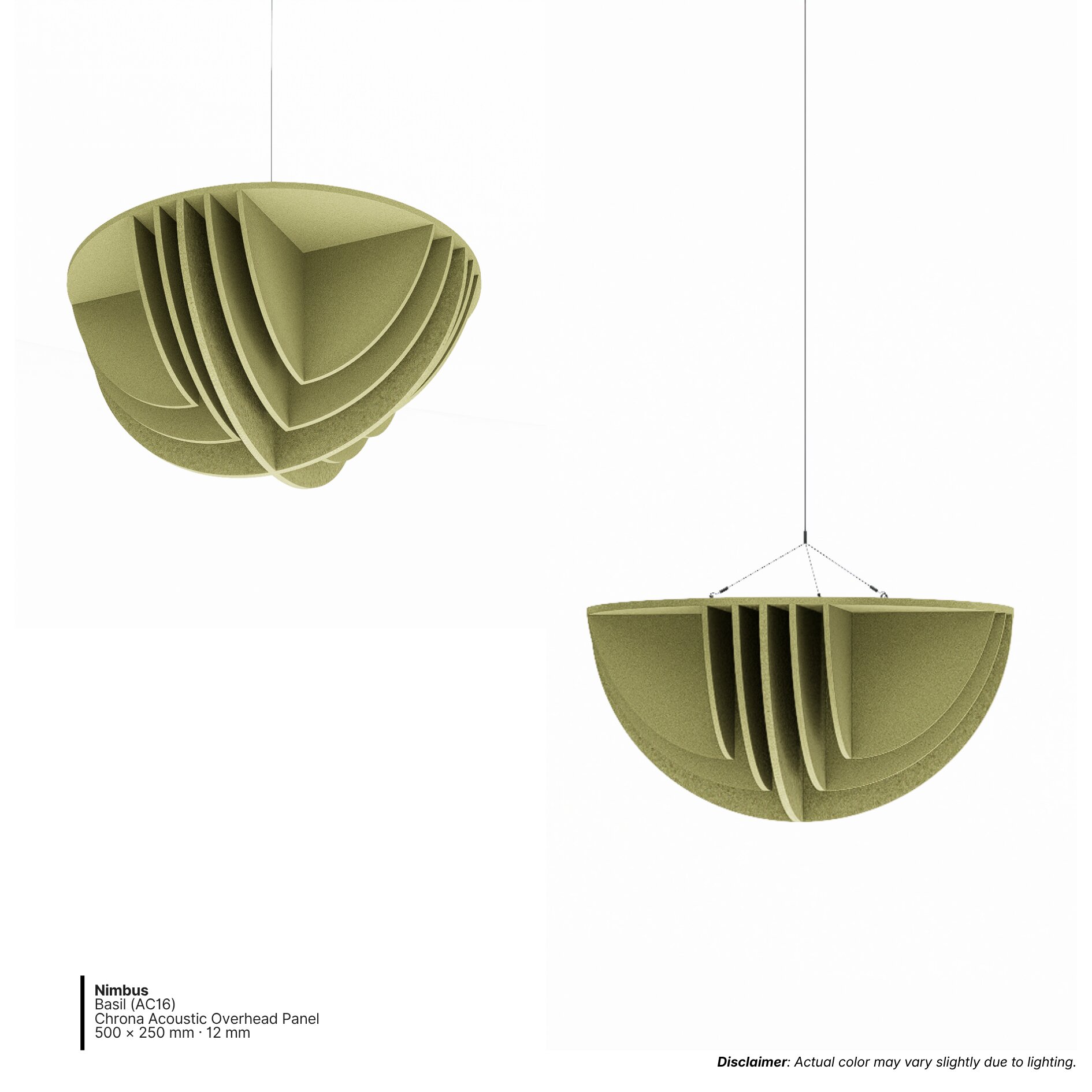

Nimbus : N.Type-A

Nimbus embodies the essence of refined minimalism and acoustic precision. Designed for environments that value tranquility and clarity, this overhead panel provides superior sound absorption without compromising visual harmony. Its clean geometry and soft tonal presence make it a seamless addition to both modern workspaces and intimate interiors. Crafted with advanced acoustic materials, Nimbus effectively controls reverberation and enhances speech intelligibility, creating a balanced atmosphere ideal for concentration, collaboration, or relaxation. Suspended elegantly overhead, it transforms ceilings into functional soundscapes — offering both aesthetic refinement and acoustic comfort.
Pattern Selection
ColorAC01 - White
Expression
Composition: 100% PET (60% - 80% post-consumer Recycled)
Colours Available: 42
Pattern Type: Precision cut
Dimensions and Weight
Diameter: 500mm (+/- 2mm)
Height: 250mm (+/- 2mm)
Thickness: 12mm (+/- 7%)
Unit of Sale: Panel
Density: 2400gsm
Fire Test Results
Standard Test Method:
AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)
ASTM C423 - 17

Sound Absorption Average (SAA) Results:
Direct fix: 0.43
20mm air gap: 0.61
50mm air gap: 0.75

Weighted Sound Absorption Coefficient (αw) Results:
Direct fix: 0.30 (MH)
20mm air gap: 0.45 (MH)
50mm air gap: 0.60 (MH)

Sound Absorption Class:
D (Direct fix), D (20mm air gap), C (50mm air gap)

Equivalent Absorption Area (Aeq) in m² Sabins

Noise reduction coefficient result key:
H = High Frequency
MH = Mid to High Frequency
Acoustic Performance
NCC C1.10 Clause 4 (AS 5637.1:2015)
NZBC C/VM2 Appendix A

Group 1. SMOGRA: 13mm²/s² x 1000
Group 1-S, Smoke Production Rate: 3.6m²/s
Core Composition. Pattern.
pattern
pattern
pattern
Sustainability
VOC Emissions Results:
ASTM D5116 - 2017: TVOC Emissions Rate: 0.080mg/m²/hr (24hrs), Formaldehyde Emissions Rate: 0.008mg/m²/hr (24hrs)

CDPH Standard Method v1.2 – 2017 (CA 01350):
TVOC Emissions Rate: 0.010mg/m³, Formaldehyde Emissions Rate: <1μg/m³
