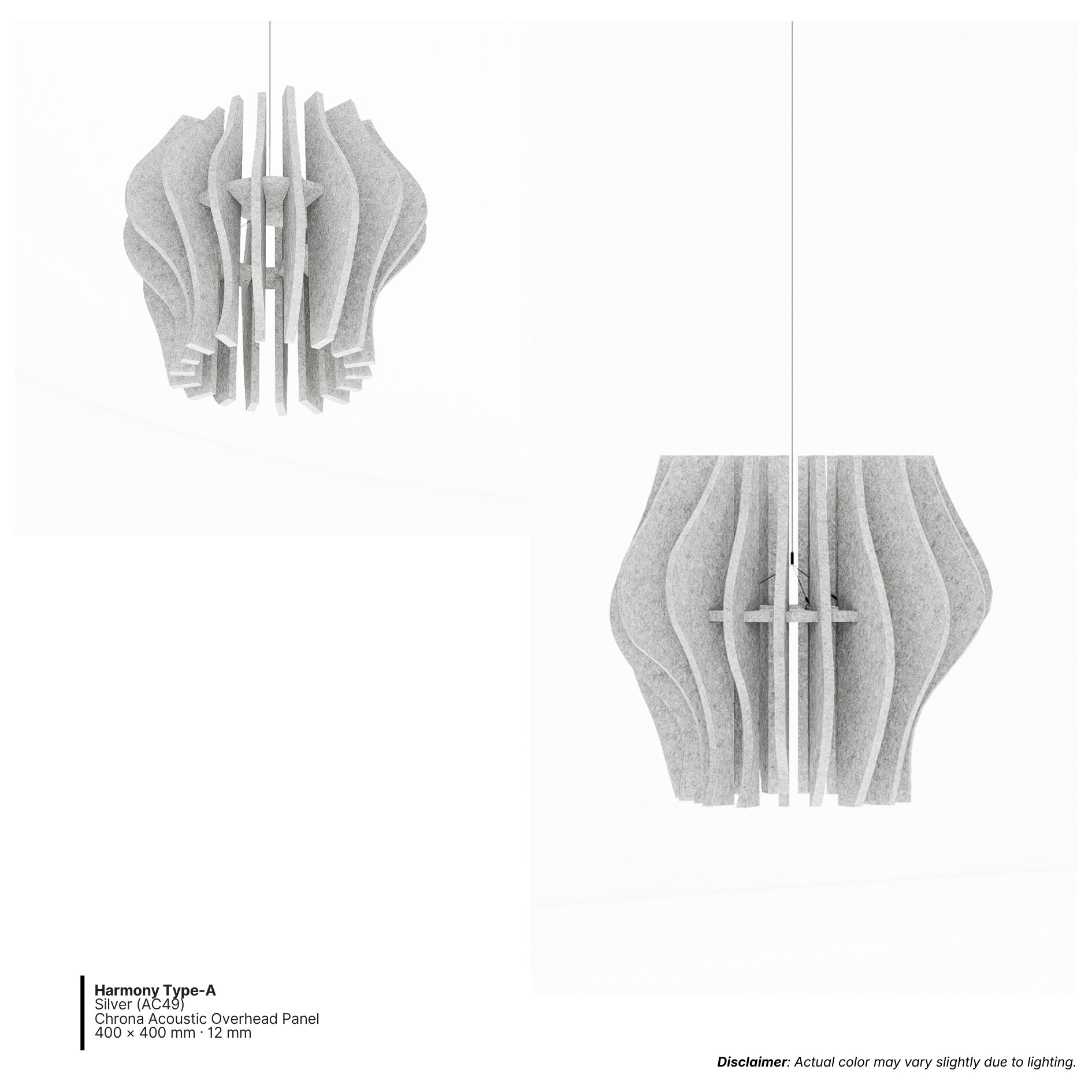

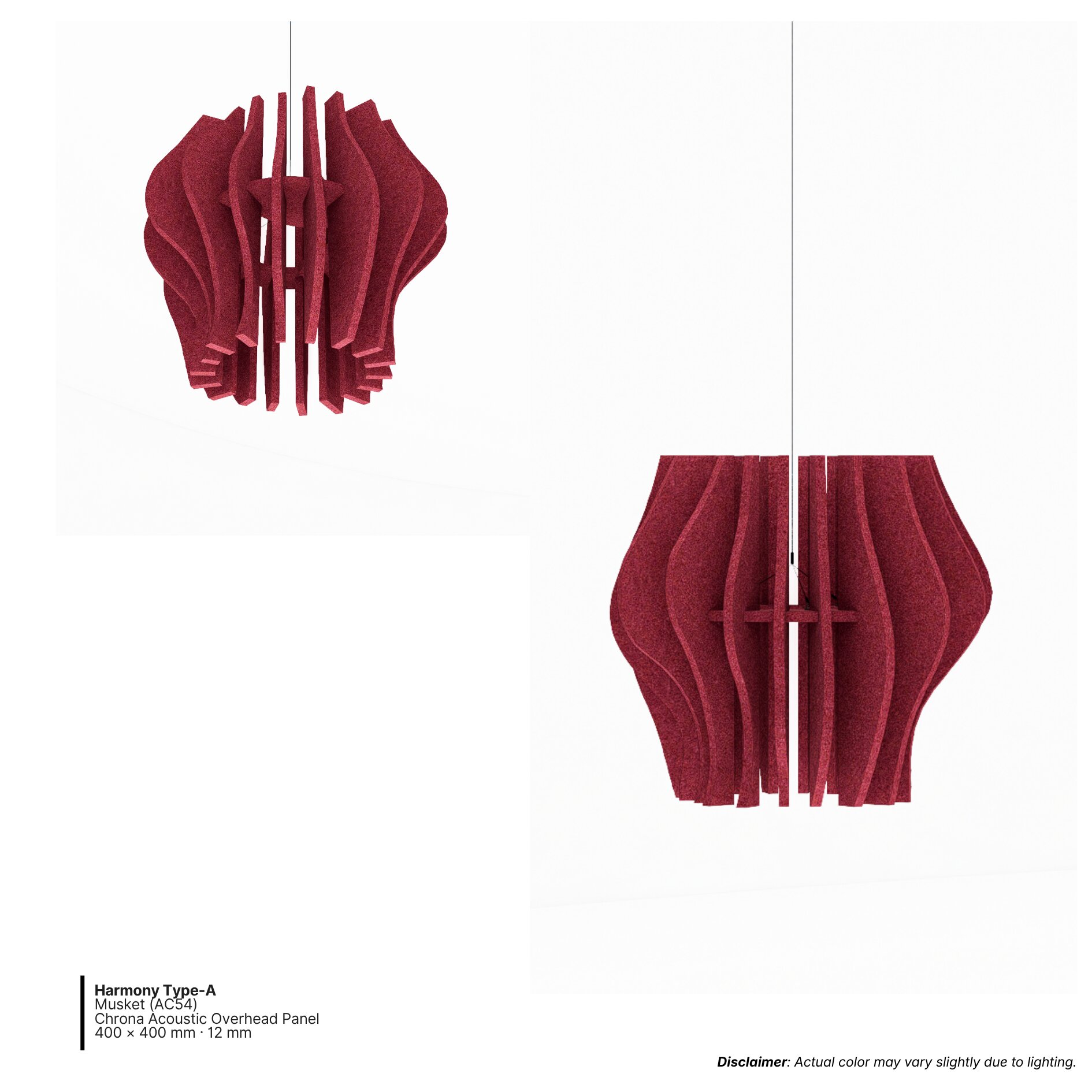

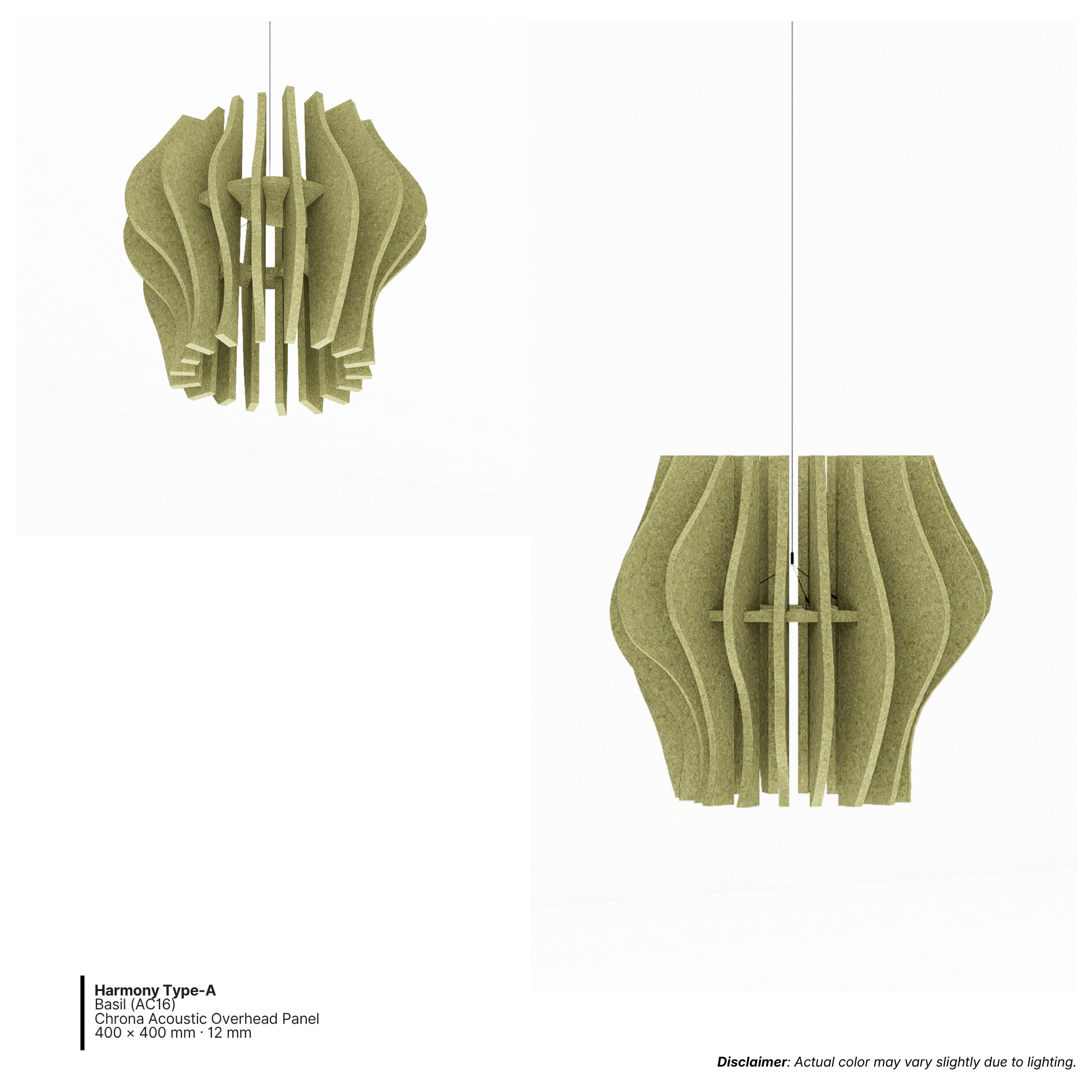

Harmony : H.Type-A

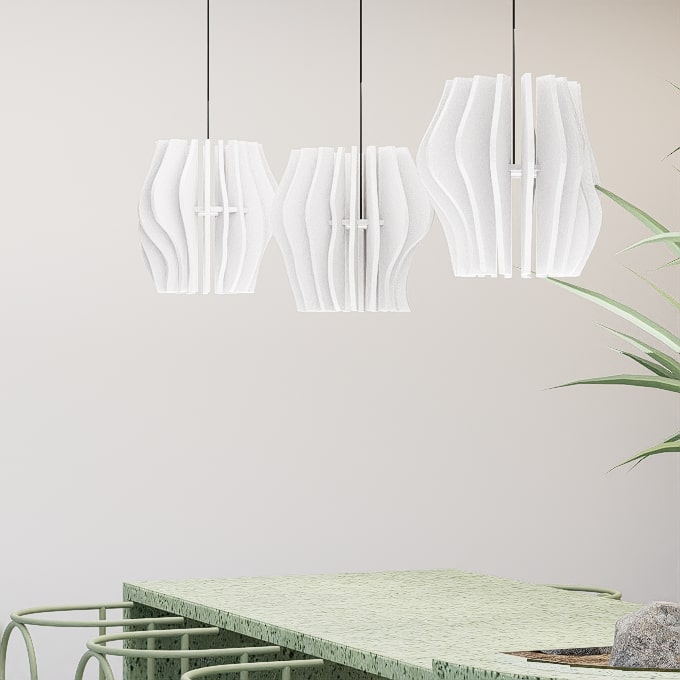

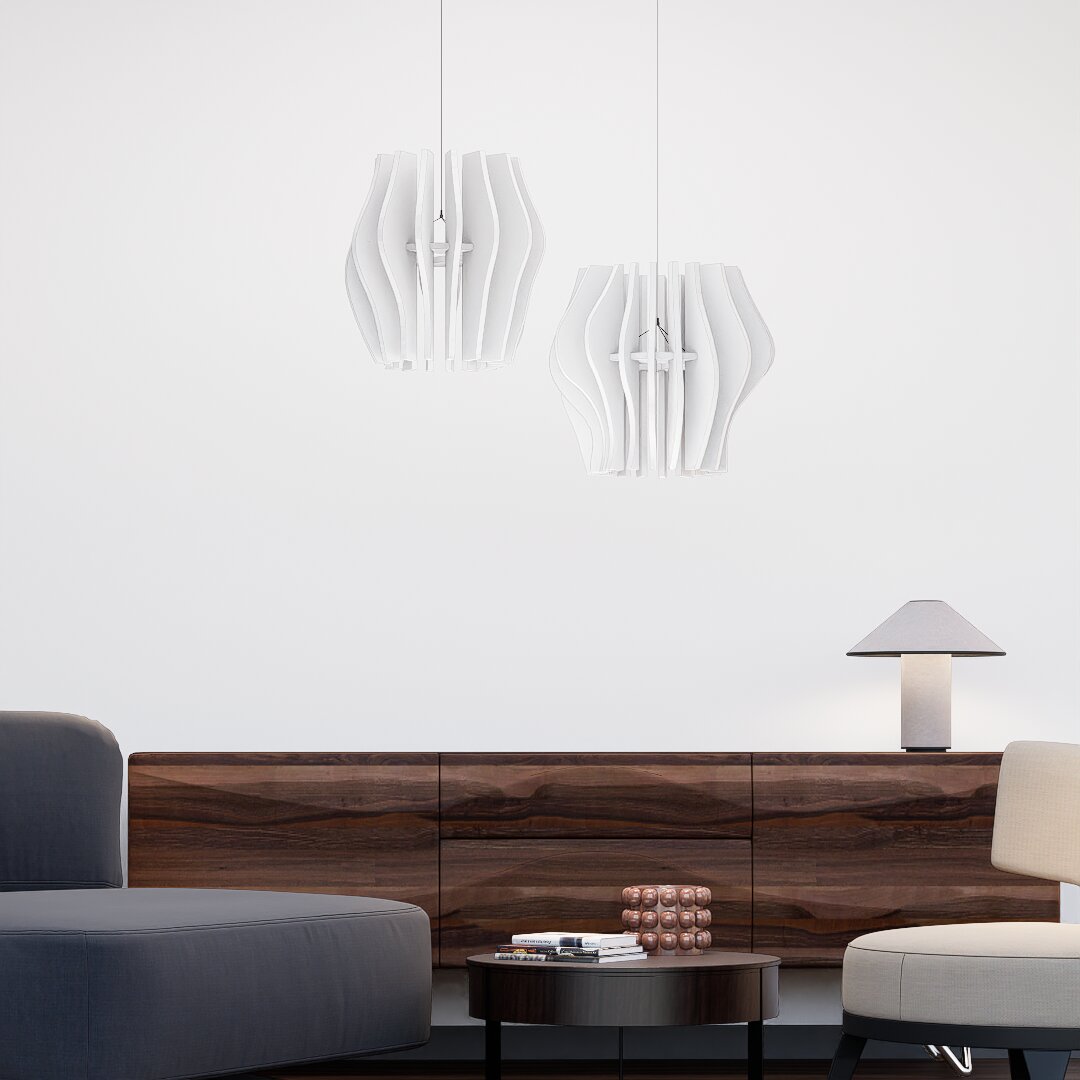

Harmony is a sculptural ceiling acoustic panel system designed to balance sound control with visual rhythm. Suspended from the ceiling, Harmony transforms overhead space into an acoustic feature that reduces reverberation while adding depth, movement, and architectural interest to interiors.
Pattern Selection
ColorAC01 - White
Expression
Composition: 100% PET (60% - 80% post-consumer Recycled)
Colours Available: 42
Pattern Type: Precision cut
Dimensions and Weight
Max. Diameter: 400mm (+/- 2mm)
Height: 400mm (+/- 2mm)
Thickness: 12mm (+/- 7%)
Unit of Sale: Panel
Density: 2400gsm
Installation Type: Hanging / Suspended
Fire Test Results
Standard Test Method:
AS ISO 354: 2006 (R2016)
AS ISO 11654: 2002 (2016)
ASTM C423 - 17
Sound Absorption Average (SAA) Results:
Direct fix: 0.43
20mm air gap: 0.61
50mm air gap: 0.75
Weighted Sound Absorption Coefficient (αw) Results:
Direct fix: 0.30 (MH)
20mm air gap: 0.45 (MH)
50mm air gap: 0.60 (MH)
Sound Absorption Class:
D (Direct fix), D (20mm air gap), C (50mm air gap)
Equivalent Absorption Area (Aeq) in m² Sabins
Noise reduction coefficient result key:
H = High Frequency
MH = Mid to High Frequency
Acoustic Performance
NCC C1.10 Clause 4 (AS 5637.1:2015)
NZBC C/VM2 Appendix A
Group 1. SMOGRA: 13mm²/s² x 1000
Group 1-S, Smoke Production Rate: 3.6m²/s
Core Composition. Pattern.

Sustainability
VOC Emissions Results:
ASTM D5116 - 2017: TVOC Emissions Rate: 0.080mg/m²/hr (24hrs), Formaldehyde Emissions Rate: 0.008mg/m²/hr (24hrs)
CDPH Standard Method v1.2 – 2017 (CA 01350):
TVOC Emissions Rate: 0.010mg/m³, Formaldehyde Emissions Rate: <1μg/m³
Colour options

AC01 - White
