V-Groove Panels :

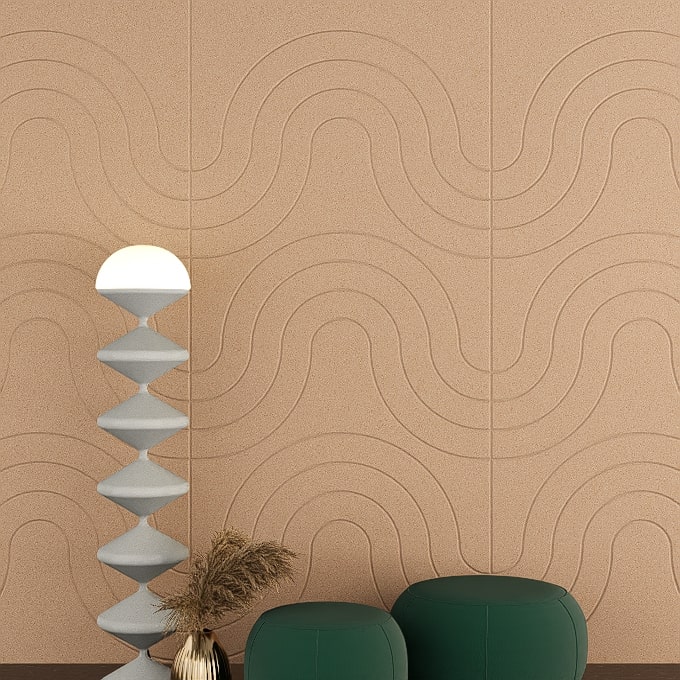

The Audisa Coastal Acoustic Panel is more than a sound solution—it’s a sensory experience. Inspired by the gentle rhythm of ocean waves, Coastal brings a sense of calm and fluidity to any space. Its sculpted surface mimics the undulating patterns of the shoreline, inviting both the eye and ear to linger. Crafted with precision, each panel is engineered to absorb unwanted noise while enhancing the acoustic clarity of your environment. Whether installed in a creative studio, a wellness space, or a modern living room, Coastal transforms sound into something intentional and immersive.
Pattern Selection
Color
Expression
Composition: 100% PET (60%–80% post-consumer Recycled)
Colours Available: 42
Pattern Type: Precision cut
Dimensions and Weight
Length: 2800mm (±2.4mm)
Width: 1200mm (±2.4mm)
Thickness: 12mm (±0.5mm)
Unit Sheet Size: 3.36m²
Density: 2400gsm
Fire Test Results
NCC C1.10 Clause 4.5 AS5637.1:2015
NCC CV3 (AS1530.3)
Group 1, SMOGRA: <100m²/s²
Group 3, Smoke Production Rate: <250m²/s²
Acoustic Performance
Standard Test Method:
AS ISO 354:2006 (2016)
AS ISO 11654:2002 (2018)
ASTM C423-17
Sound Absorption Average (SAA) Results:
Direct: 0.42 (±0.03)
25mm air gap: 0.75
50mm air gap: 0.85
Weighted Sound Absorption Coefficient (αw) Results:
Direct: 0.40 (H)
25mm air gap: 0.75
50mm air gap: 0.85
Equivalent Absorption Area (m²) in Sabins
No installation coefficient results say
NR – Mid to High Frequency
Core Composition. Pattern.

Sustainability
VOC Emissions Results:
ASTM D5116 – 2017: TVOC Emission Rate: 0.01mg/m²/hr (24hrs), Formaldehyde Emission Rate: 0.01mg/m²/hr (24hrs)
CDPH Standard Method v1.2 – 2017 (CA 01350): TVOC Emission Rate: 0.01mg/m², Formaldehyde Emission Rate: <0.01µg/m³
Colour options

AC01 - White
